Aluminium Castings
Industrial Aluminum Extrusions
Product Brochure
Usage/Application | Industrial |
Surface Finishing | Anodized |
Material | Aluminum |
Brand | Rajshi |
Color | Silver |
Country of Origin | Made in India |

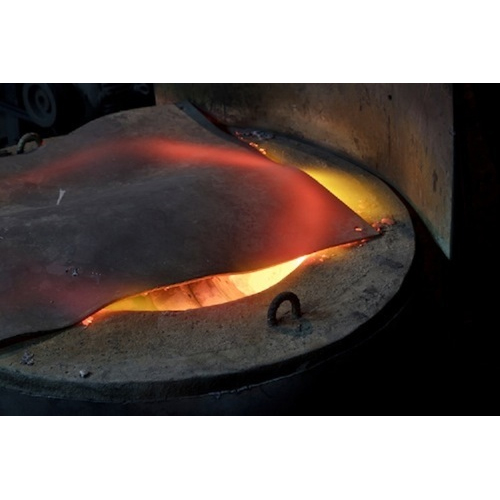

Aluminum Casting Services
Product Brochure
Methods | Die Casting |
Material | Aluminium |
Casting Techniques | No-Bake, Dry Sand, Semi-Permanent Mold, Permanent Mold |
Products | Shapes, Sheet, Rod |
Surface Treatment | Powder coating or liquid painting |
Requirement Frequency | One Time |
Brand | Rajshi |
Casting process
- Heat the aluminum material at high temperature in furnace until it melts
- The molten aluminum is then poured into mold or die of desired cavity shape at high pressure
- Let it be cold & solidified
- Broke out from the mold
- Cost effective production with minimization in labor and tooling
- Highly repeatable
- Smooth texture
- Light weight
- Oxidation proof
- Exceptional complex dimensional geometry
- Impeccable mechanical strength in stress environment
- Sturdy construction
- Excellent dimensional stability
- Fine design manufacturing freedom for different sorts of parts
- Resistant to corrosion
- Aircraft components
- Automotive parts
- Housing & pistons
- Marine engines
- Small appliances
- Hand tools
- Lawnmowers
Aluminium Metal Casting
Product Brochure
Finishing | Powder coating or liquid painting |
Material Grade | LM0 |
Color | Black |
Usage/Application | Industry |
Alloy | With Alloy |
Material | Aluminium |
Surface Treatment | Galvanized |
weight | 400 Kg |
Casting type | No-Bake, Dry Sand, Semi-Permanent Mold, Permanent Mold |
- Material: Aluminium
- Weight: 0.05-400kg
- High quality.
- Reasonable price.
- Delivery on time.
- Quality Assurance.

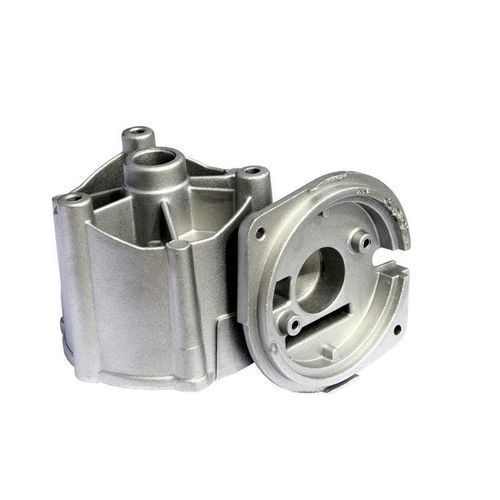

Aluminum Alloy Castings
Product Brochure
Application | Machinery Parts |
Process | Machining, heat treatment , Sandblast |
Material | Aluminium |
Casting Type | No-Bake, Dry Sand, Semi-Permanent Mold, Permanent Mold |
Die making | Own tool room for die making ans maintenance |
- Application: Machinery Parts
- Material: Aluminum
- Die to make: own tool room for die making and maintenance
- The casting methods are considered based on the quantities of components, required hardness, timing factor and financial viability.
- Further, machining, heat treatment and sandblasting services are also offered.

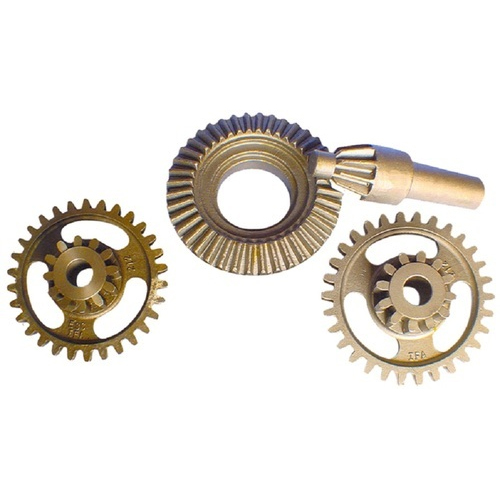

Aluminum Investment Casting
Product Brochure
Finishing Type | Powder coating or liquid painting |
Usage/Application | Industrial applications. |
Material | Aluminum |
Process | Investment Casting |
Shape | Customised |
Size | Customised |
- Process:Investment casting
- Application:industrial
- Size:Customer specified
- Material:Aluminum
Zinc Pressure Die Casting
Product Brochure
Material | Zinc |
Finishing | Powder coating or liquid painting |
Usage/Application | Building hardware, buttons and luggage fittings, electrical switchgear parts and decorative Hardware |
Zinc Alloy | Alloy 3, alloy 5 and alloy 7 |
Casting Method | Pressure Die Casting |
Alluminium Alloy Machine casting
Product Brochure
Type | Casting |
Material | Aluminium Alloy |
Pressure | High Pressure |
Usage/Application | Industrial |
Casting Method | machined |
Size | Customized |
Color | Customized |
Shape | Customized |
We are situalted at heart of India at Delhi, in Greater Noida.
Cutomised Casting Alloys
Product Brochure
Material | Aluminium, Iron |
Finishing | Powder coating or liquid painting |
Type | Casting |
Brand | Rajshi |
Application | Industrial Applications |
Size | Customised |
Grey Metal Casting
Product Brochure
Surface Finishing | powder coating or liquid painting |
Material | Carbon Steel |
Type | Die Casting |
Color | Grey |
Tolerance (%) | 0.001 mm |

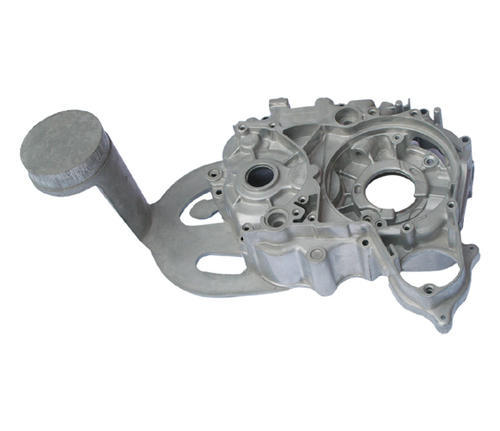

Aluminium Die Casting
Product Brochure
Material | Aluminium |
Usage/Application | Industrial |
Finishing | Painting |
Brand | Rajshi |
Die making | Own tool room for die making and maintenance |
Casting type | No-Bake, Dry Sand, Semi-Permanent Mold, Permanent Mold |
Aluminium castings presently find application in a wide range of industrial applications. Other than being used by power generation equipment manufacturers, it is also used in the manufacturing processes of electrical and other associated industries. With present facilities of modern foundry, pattern shop & machine shop as well as arrangements for heat treatment & ultra-sonic tests also helps us to improve quality of castings everyday and deliver utmost satisfaction to our esteemed customers.
Our Expertise
As leading partners in the field of Aluminium Die Casting, Machined as well as Painted Assemblies, we successfully combine together latest technologies/platforms as well as rich experience gained in flawlessly handling the High Speed & High Precision Machining Centers. Our expertise also lies in offering turnkey production solutions that include but are not limited to tooling, machining, casting, pressure testing, mold alteration, plating, powder coating as well as assembly.
Casting Processes
We hold expertise in undertaking aluminium casting production using following processes
No-Bake
This is commonly referred to as air-set process that uses chemically bonded sand for producing medium to very large castings. Here, the best part-to-part dimensional accuracy can be successfully achieved on large complex castings. Other than this, large to medium size cores can are also be manufactured using this process.
- Most Efficient Sand Casting Technology Used
- Expertise in Handling Larger More Complex Castings
- Expertise in Creating High Strength Molds
Dry Sand
This molding process is used for intricate aluminium castings where refractory coating can also be applied to parting line surface for improving strength as well as heat-resistant characteristics.
Semi-Permanent Mold
This mold casting process allows castings in range from ounces to more than 100 lb. Further, various complex shapes can also be cast out using Aluminum alloys as well as these metal castings can also be cored.
Permanent Mold
These permanent molds make use of various Hall & Stahl hydraulic tilt pour machines. The use of this technique helps in reducing metal tumbling during pouring, thus resulting in superior metal quality.
Testings Done
In the field of Aluminium Castings, customer’s quality requirements are ever increasing. Our experience and expertise in such castings adds to our ability to offer competitive solutions that meet the defined finish and production time line. For achieving flawless finish quality, some of the tests that are conducted from our end include:
Simulation and Analysis Tests
Use of advanced simulation & testing software gives us advantage of testing all tools designed for gate design, cast fill, over flow design This process is achieved by conducting mould fill simulation as well as thermal analysis of designs at actual production parameters
This ensures good cast-ability as we are well aware of optimum machine parameters.
Other than this, the other quality testing done from our end include:
- Heat Treatment
- X-Ray Capabilities
- Ultra-Sonic testing
- Liquid Penetrant Testing
- Welding
Aluminum High Pressure Die Casting
Product Brochure
Usage/Application | Machinery Parts, industry applications |
Finishing | Powder coating or liquid painting |
Brand | Rajshi |
Shape | Round, Square |
Material | Aluminium |
Color | Metallic Grey |
Aluminium Heat Sinks
Product Brochure
Material | Aluminium |
Heat Sink Fin Style | Round Fin |
Brand | Rajshi |
Surface Finishing | Powder coating, anodizing, liquid painting |
Application | LED, defense, automotive, nuclear and power transmission industry, aerospace and telecommunication a |
Processing | Castings, extrusion or by machining |

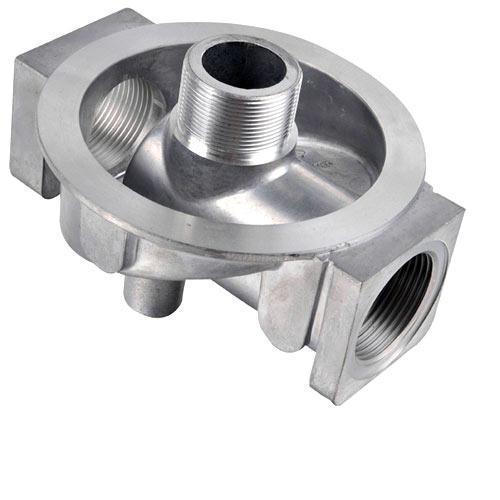

Aluminium Pressure Die Casting
Product Brochure
Usage/Application | Machinery Parts |
Material | Aluminum |
Die Casting Type | No-Bake, Dry Sand, Semi-Permanent Mold, Permanent Mold |
Finishing | Powder coating or liquid painting |
Process | Machining, heat treatment and sand blasting |
Brand | Rajshi |
Die making | Own tool room for die making ans maintenance |
Size | Customised |
- Material: Aluminum
- Customized Aluminium Die Casting
- Packaging Details: Packing will be as per customer requirement.
Aluminium Die Casting
Product Brochure
Material | Aluminium |
Usage/Application | Machinery Parts |
Brand | Rajshi |
Finishing | Powder coating or liquid painting |
Processing | Machining, heat treatment and sand blasting etc |
Casting type | No-Bake, Dry Sand, Semi-Permanent Mold, Permanent Mold |
Size | Customised |
- Application: Machinery Parts
- Material: Aluminum
- Packaging Details: As per customer requirement

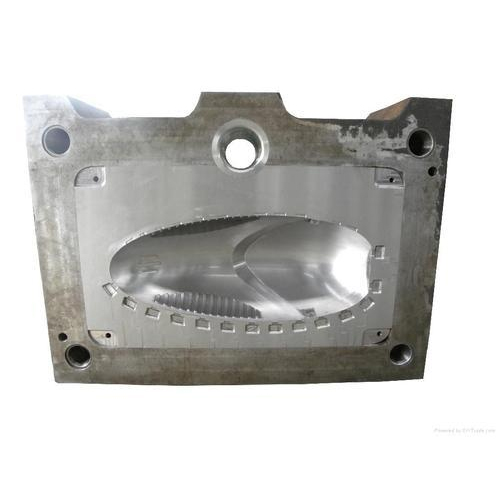

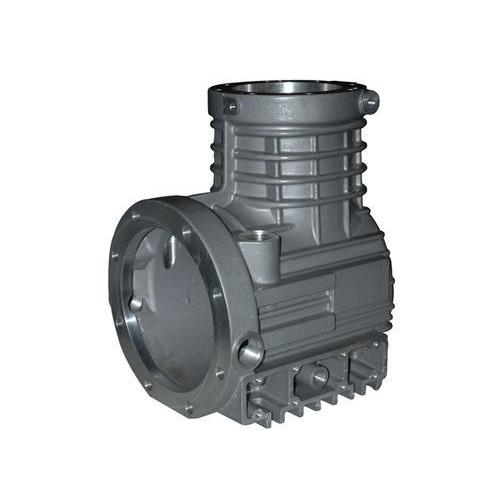

Permanent Casting Mold
Product Brochure
Material | Aluminum Alloy |
Usage/Application | Industry applications. |
Corrosion Resistant | Yes |
Mould Type | Permanent Casting Mold |
Size | Customised |
Process | Gravity casting |
Country of Origin | Made in India |
- Material: Aluminum Alloy
- Process: Gravity casting
- Product name: Permanent Casting Mold

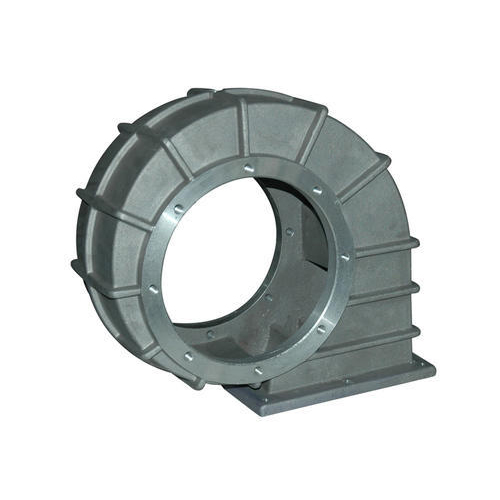

Permanent Mold Aluminum Castings
Product Brochure
Usage/Application | Industry applications |
Material | Aluminium |
Mould cavity | Single/Multiple |
Casting Type | Permanent Mold |
Shaping Mode | Die Casting |
Size | Customised |
- Product Material: Aluminium
- Shaping Mode: Die Casting
- Mould cavity:Single/Multiple
Aluminum Sand Castings
Product Brochure
Usage/Application | Defense and naval application |
Color | Black |
Pressure | High Pressure |
Weight | 50 grams to 75 Kg |
I Deal In | New Only |
Material | Aluminium |
Surface Treatments | Sand Blasting, Anodizing, Electrophoresis, Painting, Electroplating Etc |
Process | Die Casting |
Powder Coating Services
Product Brochure
Types of Surfaces | Metal Surfaces |
Usage/Application | Electric,Defence,Transportation,Heat Ventilation,Engineering Industry |
Types of Powder Coating | Thermosets |
Powder Coating Equipment | Manual powder coating machine |
Metals | Steel |
Application Methods of Coating | Brush |
Rajshi offers its customers fully machined and well painted castings to their provided specification and colour. Semi automatic Powder coating booth with digitally controlled temperature based gas fired oven gives best quality powder coated parts. Water Treatment particularly degreasing and alchrome are done prior to powder coating with standard process followed worldwide. We are like a vertically integrated foundry as fully finished parts comes from single source right from casting, machining and surface treatments.
UV resistant coating which can pass more than 1000 hour Salt Spray testing. To assure the required level of coating instruments like Coat thickness meter, Chrominence meter, Gloss meter are used.
Customised Investment Casting
Product Brochure
Usage/Application | Electric, Defence, Transportation, Heat Ventilation, Engineering Industry |
Finishing | Powder coating or liquid painting |
Process | Wax Injection, Assembly of Wax Tree, Ceramic Shell Building, Dewax |
Shape | Customised |
Size | Customised |
Wax Injection
Imitation of the preferred investment casting is created by injection molding or for lesser volumes using speedy prototyping (SLA or SLS). These mock-ups are referred to as patterns.
Assembly of Wax Tree
Patterns are then fastened to a central wax stick, called a sprue, to form a casting. This is known as wax tree.
Ceramic Shell Building
The shell is made by submerging the wax tree meeting in liquid ceramic slurry and then into a bed of fluidized fine sands. Up to eight coatings are applied in this way depending on the shape and weight of the part.
Dewax
formerly the ceramic is dry; the wax is then liquefied out, making a negative impression of the meeting within the ceramic and sand shell. This process utilizes autoclaves to uphold shell reliability.
Conventional Casting
In the conventional lost wax casting procedure, the pre-heated shell (up to 1800 deg F) is poured with molten metal by gravity filling the metal into the ceramic shell. As the metal cools, gates, sprue, the parts, and filling cup become one solid casting. Shell temperature and dissolving temperature will differ depending on the alloy.
Knockout
once the metal is cooled and hard, the ceramic shell is wrecked off by tremor or water blasting.
Cut Off Of Parts
The parts are then cut away from the central sprue utilizing an elevated speed saw.
Finished Metal Investment Castings
Following minor finishing operations, or potential needed machining functions, the metal investment castings-identical to the innovative wax patterns--are prepared for shipment to the customer from our metal investment casting China foundry. We are able to offer finished cobalt alloy investment casting, steel investment casting, aluminum investment casting, stainless steel investment casting, nickel alloy investment casting and precision investment castings.
Wall Thickness
Please call for tolerance stipulation for wall thickness or any tolerances in common. As per the metal or alloy, least amount of wall thickness can vary from 0.04 inches to 0.08 inches.
- No flash or parting lines
- Almost any metal can be cast.
- Ready for use with little or no machining required.
- Very close tolerances and excellence surface finish can be obtained.
- Complex shapes which are complicated by any other technique are possible.
- Suit for producing complex shapes where other production processes are too expensive and time-consuming.
- Occasional minute flaws.
- The size of the casting is often limited.
- Time consuming as shell moulds cannot be reused.
- Expensive as many labor engaged in the preparation of the wax patterns & shell moulds.
Black Heat Sink
Product Brochure
Usage/Application | LED Lighting,automotive,consumer electronics etc.. |
Material | Aluminum Alloy + Heatpipe |
Heat Sink Fin Style | Round Fin, Bonded Fin, Straight Fin, Folded Fin, Elliptical Fin |
Surface Finishing | Powder coating,anodizing,liquid painting |
Color | Black |
Brand | Rajshi |
Processing | Castings,extrusion or by machining |
One of the major expertise of Rajshi iis to manufacture high quality heat sink through varied process like castings, extrusion or by machining. After manufacturing of heat sink, we also take care of surface treatment that customer may call like powder coating, anodizing, liquid painting or any other plating etc.
Any designing activity is crucial for heat dissipation and Rajshi has a very rich experience in designing high quality heat sink for varied industrial application like LED Lighting, automotive, consumer electronics etc..
Basic application of heat sink is to dissipate heat and aluminum has a fairly good property for thermal heat dissipation.
Specification:
- Size:Any size can be customized
- Material: Aluminum Alloy + Heatpipe
- Finish: Any surface can be customized
Copper and Copper Alloy Casting
Product Brochure
Surface Finishing | Powder coating or liquid painting |
Dimension | 8 mm to 1000 mm |
Material | Copper |
Tolerance | 0.001 mm |
Application | potable water systems and in the metalcasting industry |
Copper And Copper Alloy Casting is the product range that extensively used in manufacturing different copper made products for various industrial applications. These copper castings are designed by making use of premium quality copper & copper alloy materials with the implementation of various casting technologies as per the industrial quality standards.
Ductile Iron Castings
Product Brochure
Material | SG, Iron |
Application | Industry applications |
Casting Method | Die Casting |
Surface Treatment | Polished, Coated etc |
Colour | Grey |
